Parameter
| Laser System |
RL-Y100 |
| Laser Type |
1064nm YAG Laser |
| Nominal Laser Power |
100W |
| Beam Diameter |
0.5-3.0mm |
| Pulse Width |
0.1-15ms |
| Frequency |
1.0~10.0Hz Continuously Adjustable |
| Maximum Laser Pulse Energy |
60J |
| Host Power Consumption |
≤2.5KW |
| Cooling System |
Build in Water Cooling |
| Aiming and Positioning |
Microscope + CCD Camera System |

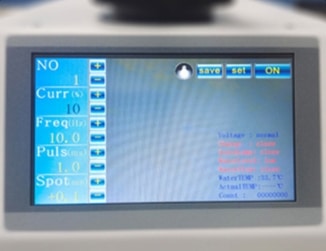

| Operating Mode |
Touch Control |
| Pump Source |
Single lamp |
| Display Touch Screen |
10X high quality colorful CCD |
| Electrical Connection Values |
AC 110V/220V ± 5%, 50HZ / 60HZ |

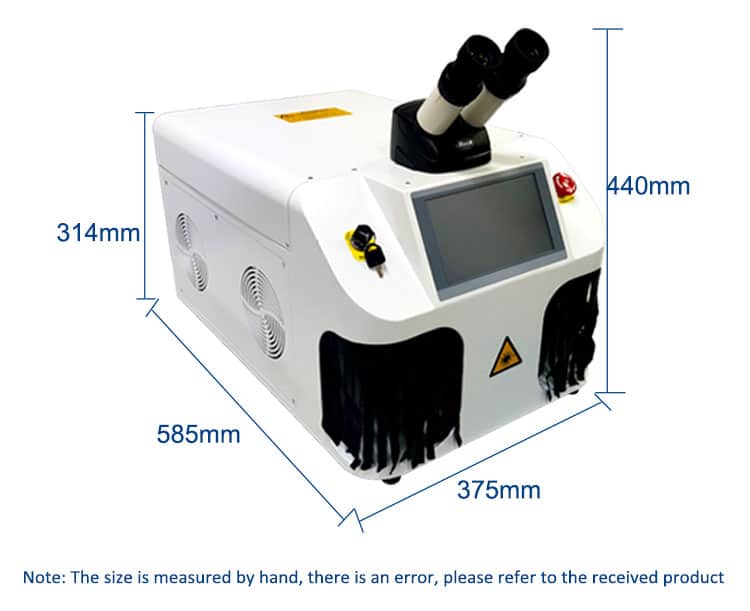

| Machine Dimension |
L58.5CM×W37.5CM×H44.1CM |
| Wooden Package Dimension |
L71CM*W56CM*H56CM |
| Machine Net Weight |
46KG |
| Machine Gross Weight |
54KG |
| Operating Environmental Temp |
≤45℃ |
| Humidity |
< 90% non-condensing |
| Application |
Welding and repairing all kinds of jewelry and accessories |

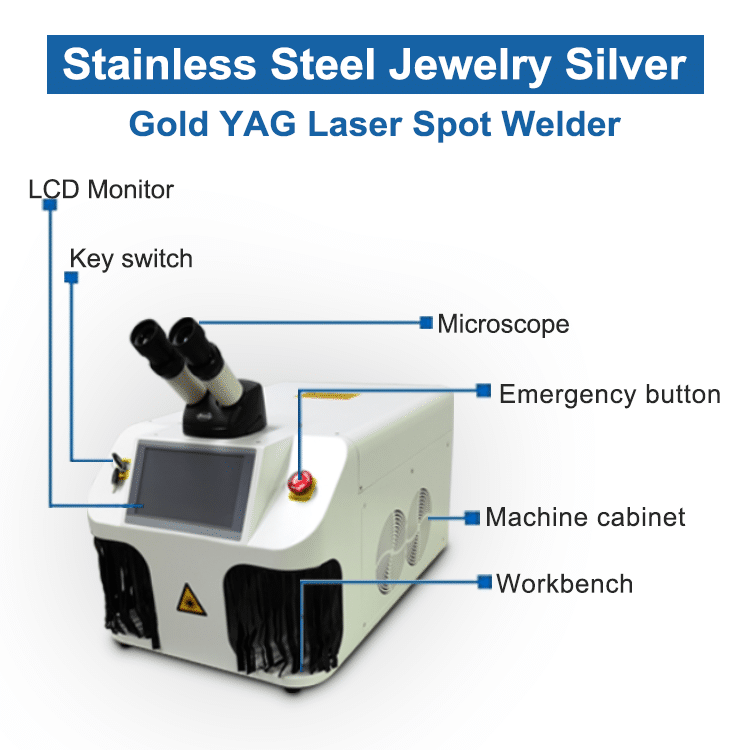

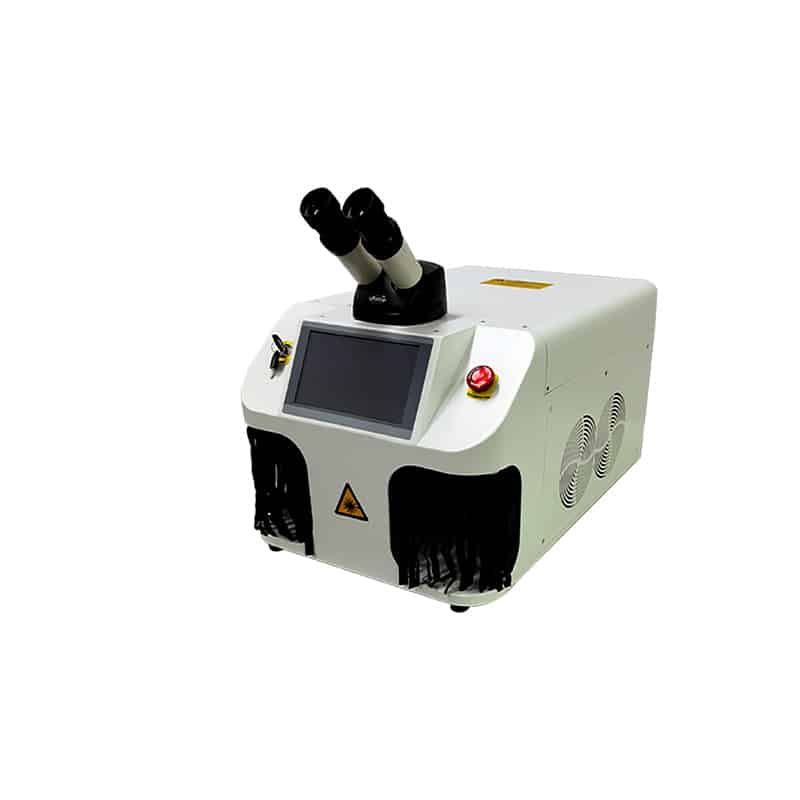

Product Introduction
This 100W YAG spot laser welding machine is a portable laser welding equipment used for gold, silver, and other jewelry. It utilizes an imported ceramic and metal reflecting cavity, with a pulsed xenon lamp pumping to output 1064nm laser.
- High depth-width ratio: The ratio of the laser welding width to depth is high.
- Small heat-affected zone: The area heated during welding is small, reducing deformation.
- Fast welding speed: Laser welding is performed at a high speed.
- Smooth and aesthetically pleasing weld seams: The weld seams are smooth and visually appealing.
- Minimal or simple post-welding processing: The appearance requires little to no post-welding processing.
- High welding quality: Welding quality is high, with no pores.
- High welding precision: The focal spot size can be precisely controlled, achieving accurate positioning.
♦Video⇐Click here to learn more
Product Advantages
- Jewelry laser solder machine allows precious metals and many other alloys to be joined together without the use of solder or torches.
- Laser welders are strong even in areas which are difficult to access with traditional joining technologies. In general if you can see the joint- it can be laser welded.
- It has become a must-have tool for jewelers doing jewelry repairs as well as helping with jewelry designs that would not have been easily produced prior to this technology.
- Jewelry laser solder machine can be used to fill porosity, re-tip platinum or gold prong settings, repair bezel settings,repair/resize rings and bracelets without removing stones and correct manufacturing defects.
Product Applications
Laser spot welder is suitable for precision casting and welding of small hardware composed of various metal materials, such as jewelry, dentures, clocks, medical treatment, instrumentation, electronic products, mechanical mold processing, automotive and other industries, especially suitable for trimming holes and gold and silver jewelry Spot welding of jewelry, welding of sand holes, repairing joints and parts of claw feet.
