Product Introduction
The jewelry laser welder for gold and silver adopts imported ceramic and metal reflecting cavity, pulse xenon lamp pumped to output 1064nm laser, mainly for welding jewelry thin materials, precision parts, can realize spot welding, butt welding, lap welding, sealing welding, high depth width ratio of weld width, small heat influence area, low distortion, welding speed, welding seam smooth, beautiful welding gap, after welding the appearance is without processing or simply processing, welding quality is high, pore-free, can be controlled accurately, the focal spot size is small, high positioning accuracy. If you are interested in our products, please leave a message or contact us for your quotation.

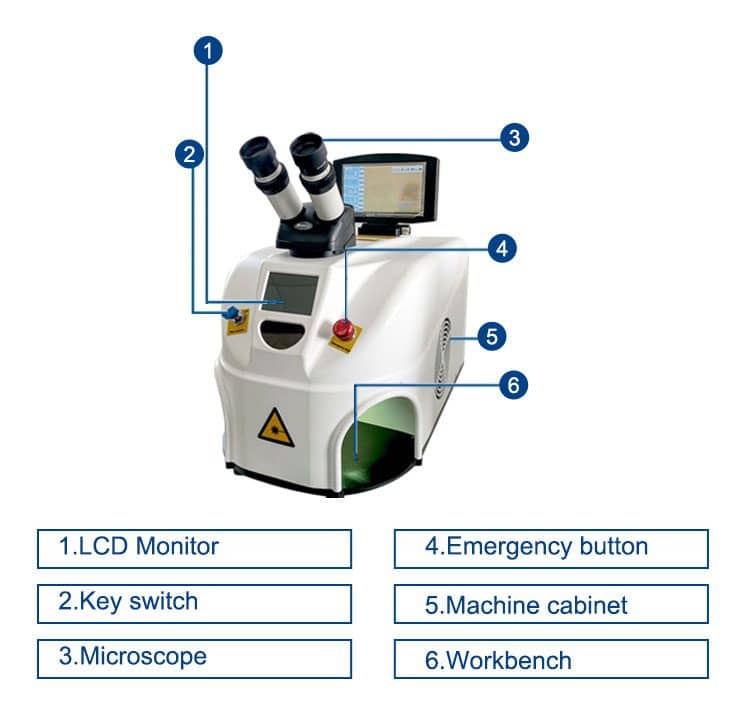

- Microscope: Carefully observe the welding reaction of the sample.
- Workbench: Standard two warm color temperature LED lights.optional two-dimensional lift table.
- Control panel: Control screen, only need to adjust three parameters. convenient and simple operation is to learn to use.
- Interface: Imported electronic interface components, standard AC 220V voltage keep safe work.
- Footswitch: The external pedal controls the laser work, click once, light once.
Product Advantages
- It allows precious metals and many other alloys to be joined together.
- Laser welders are strong even in areas which are difficult to access with traditional joining technologies. In general, if you can see the joint- it can be laser welded.
- It has become a must-have tool for jewelers doing jewelry repairs as well as jewelry designs.
- Laser spot welder can be used to fill jewelry porosity, re-tip platinum or gold prong settings, repair bezel settings, repair/resize rings and bracelets.
♦Product Video ⇐Click here to learn more
parameter
Product Model: | RL-Y80 | Nominal Laser Power: | 80W |
Laser Type: | 1064nm YAG Laser | Beam Diameter: | 0.5-3.0mm |
Pulse Width: | 0.1-15ms | Frequency | 1.0~10.0Hz Continuously Adjustable |
Maximum Laser Pulse Energy: | 50J | Host Power Consumption: | ≤2.5KW |
Cooling System: | Build in Water Cooling | Aiming and Positioning: | Microscope + CCD Camera System |
Operating Mode: | Touch Control | Pump Source: | Single lamp display |
Display Touch Screen: | 10X high-quality colorful CCD | Electrical Connection Values: | AC 110V/220V ± 5%, 50HZ / 60HZ |

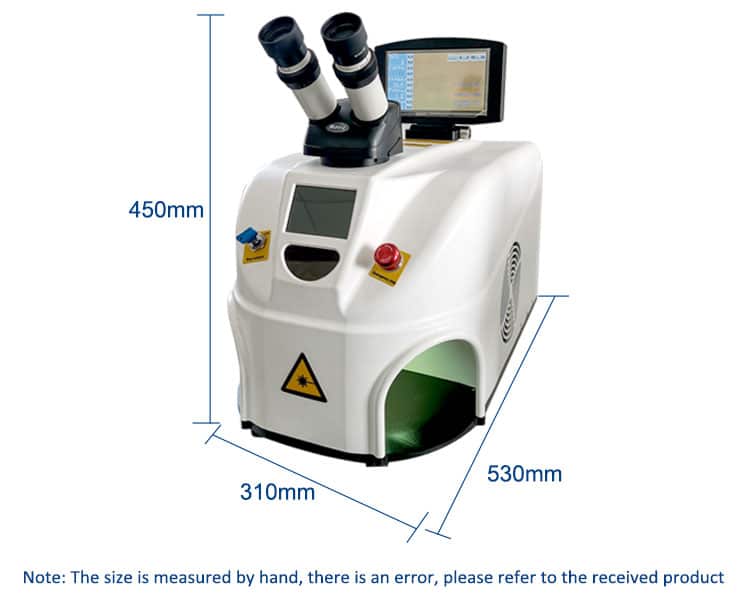

Machine Dimension: | L53CM×W31CM×H45CM | Wooden Package Dimension: | L63CM*W52CM*H54CM |
Machine Net Weight: | 35KG | Operating Environmental Temp: | ≤45℃ |
Machine Gross Weight: | 40KG | Humidity: | < 90% non-condensing |
Application: | Welding and repairing all kinds of jewelry and accessories |
FAQ
1. who are we?
We are based in Guangdong, China, start from 2015,sell to South America(20.00%),Eastern Europe(20.00%),Mid East(10.00%),Western Europe(10.00%),Eastern Asia(8.00%),North America(5.00%),Southeast Asia(5.00%),Northern Europe(5.00%),South Asia(5.00%),Domestic Market(5.00%),Southern Europe(3.00%),Central America(2.00%),Africa(00.00%),Oceania(00.00%). There are total about 11-50 people in our office.
We are based in Guangdong, China, start from 2015,sell to South America(20.00%),Eastern Europe(20.00%),Mid East(10.00%),Western Europe(10.00%),Eastern Asia(8.00%),North America(5.00%),Southeast Asia(5.00%),Northern Europe(5.00%),South Asia(5.00%),Domestic Market(5.00%),Southern Europe(3.00%),Central America(2.00%),Africa(00.00%),Oceania(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Laser Marking Machine, Laser Welding Machine, Laser Cleaning Machine, Laser Cutting Machine, Laser Spare Parts.
Laser Marking Machine, Laser Welding Machine, Laser Cleaning Machine, Laser Cutting Machine, Laser Spare Parts.
4. why should you buy from us not from other suppliers?
More than 10 series, 300 types. Personalized products and services to provide customers with a significant advantage.
More than 10 series, 300 types. Personalized products and services to provide customers with a significant advantage.
5. what services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW,Express Delivery; Accepted Payment Currency: USD,EUR, JPY,CAD, AUD,HKD, GBP, CNY, CHF; Accepted Payment Type: T/T,D/P D/A,PayPal,Western Union,Cash;
Language Spoken: English,Chinese, Japanese
Accepted Delivery Terms: FOB, CFR, CIF, EXW,Express Delivery; Accepted Payment Currency: USD,EUR, JPY,CAD, AUD,HKD, GBP, CNY, CHF; Accepted Payment Type: T/T,D/P D/A,PayPal,Western Union,Cash;
Language Spoken: English,Chinese, Japanese
