Product Description
Laser welding machines are specially developed for the laser welding of jewelry. It is an important aspect of the application of laser processing technology. The spot welding process is heat conduction, laser radiation heats the surface of the workpiece, and the surface heat diffuses into the interior through heat conduction, and the workpiece is melted through control. The width, energy, peak power, and repetition frequency of the laser pulse form a specific molten pool. If you have an interest in our products, kindly leave a message or reach out to us for a quotation.

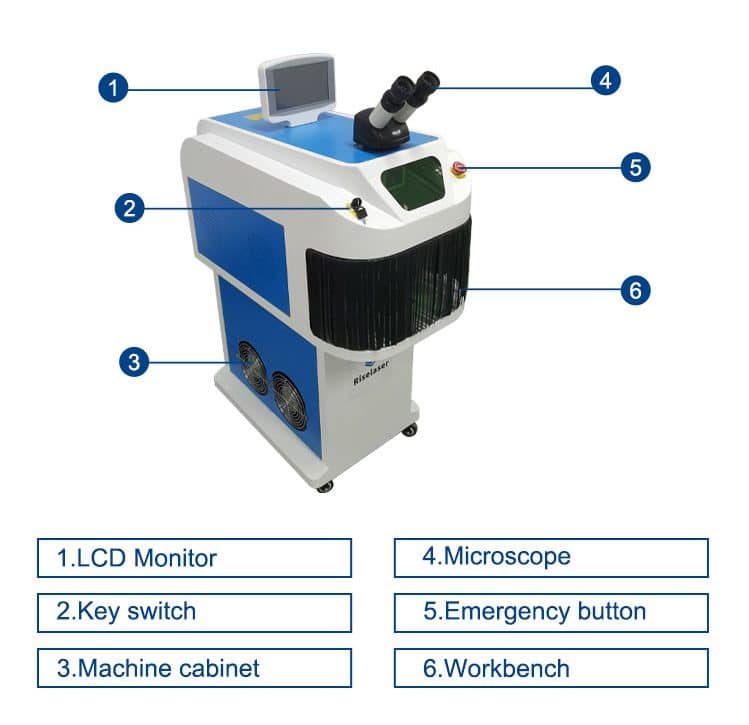

- 10x high-definition microscope and 10x built-in high-definition CCD display.
-
Large built-in chiller,one-key automatic pumping. When the water tank is full, it will automatically stop pumping. Can be connected to an external chiller.
- Large working space is conducive to operation.
Features
- The quality of sheet metal is better than similar products
- Compact appearance saves space
- Using imported xenon lamp, it can be used for a long time for 24 hours
- The energy is very strong, and it has a great advantage in welding jewelry
Parameters
| Model Name | RL-Y200 |
| Laser Type | 1064nm |
| Laser Power | 200W |
| Laser Engery | 90J |
| Pulse Width | ≤20ms |
| Pulse Frequency | ≤30Hz |
| Positioning accuracy | +/-0.02mm |
| Size of Light Spot | 0.2-2.0mm |
| Observing System | microscope |
FAQ
1.How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
2.How long is the cable?
Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.
3.How thick can 1500w-3000W be welded?
1-8mm thick metal materials
4.Is there a wire feeder?
We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address. We will send more detailed pictures to your email.
5.Can aluminum and galvanized steel be welded?
Yes, it can
6.Packaging?
All our machines are packed in wooden boxes
7.Language interface?
Supports language customization. You can also translate and insert to software.
