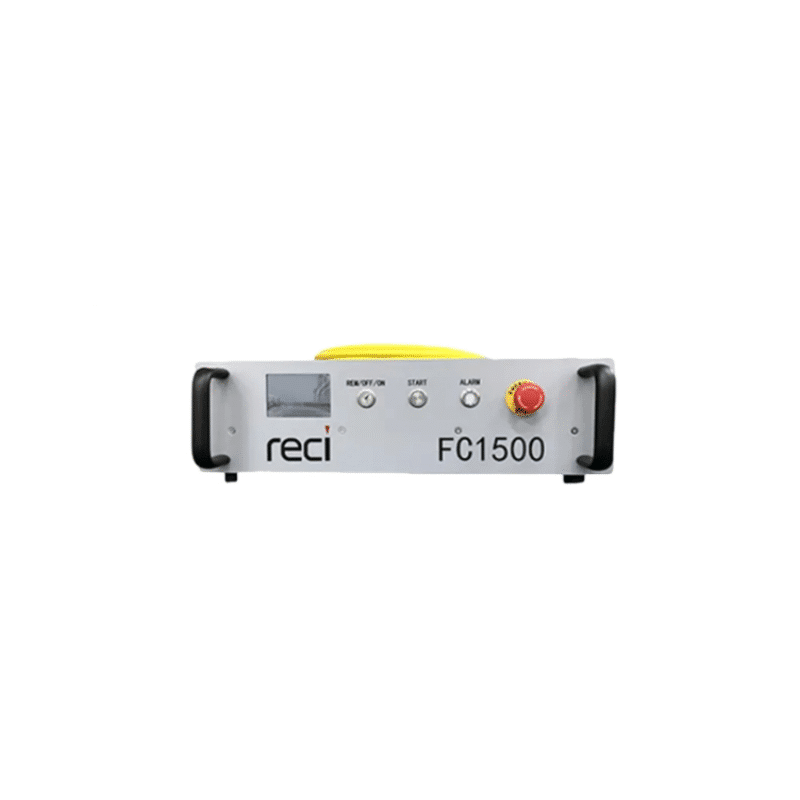

Product Introduction
The Raycus fiber laser power source has higher photoelectric conversion efficiency (>30%), better and more stable beam quality, and stronger anti-high anti-reflective ability to ensure a more stable and precise cutting effect in thick plate cutting.The Raycus fiber laser power source has higher photoelectric conversion efficiency (>30%), better and more stable beam quality, and stronger anti-high anti-reflective ability to ensure a more stable and precise cutting effect in thick plate cutting. The product is suitable for a variety of applications: cutting, welding, drilling, medical device processing, etc. The cut plate has a narrow slit and a bright cross-section. If you are interested in our products, please contact us for a quotation.
Advantages
- Multiple anti-high anti-reaction capabilities
- High electro-optical conversion efficiency
- Wide frequency modulation range
- Excellent beam quality
- Laser power support customization
Product Specification
| MODEL | FC 1000 | FC 1500 | FC 2000 | FC 3000 | FC 4000 | FC 6000 | FC 12000 |
| Output Power(W) | ≥1000 | ≥1500 | ≥2000 | ≥3000 | ≥4000 | ≥6000 | ≥12000 |
| Central Wavelength (nm) |
1080+3 |
||||||
| Operating Mode | CW/Modulate | ||||||
| Power Range (%) | 10-100 | ||||||
| Max. Modulation Frequency (kHz) |
20 |
||||||
| Beam Delivery Optics | QBH | Q+/LOE | |||||
| Output Fiber Diameter (μm) | 20/50 | 30/50 | 30 | 50/100 | 100 | ||
| Delivery Fiber Length (m) | 10/15 | 20 | |||||
| Operating Voltage (VAC) | 220V+10%、50/60Hz | 380V+10%、50/60Hz | |||||
| Maximum power consumption(W) | <3860 | <5300 | <7280 | <10600 | <14000 | <18000 | <35000 |
| Cooling Water Flow with load(L/min) | >15 | >20 | >30 | >35 | >60 | >100 | |

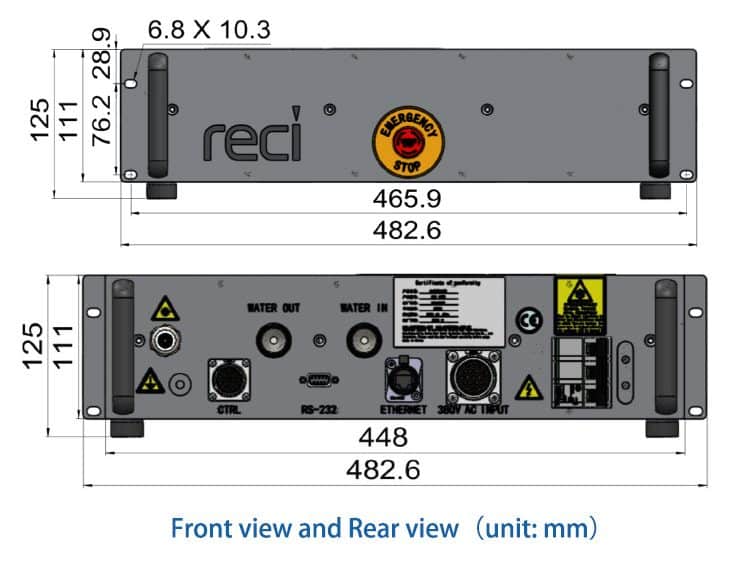

| Dimensions W×H×D (mm3) | 483x111x462 | 483x111x572 | 483x111x572 | 483x111x732 | 483x111x732 | 483x133x952 | 482.6x244x1050 |
| Weight (kg) | <25 | <28 | <29 | <40 | <50 | <55 | <100 |
FAQ
1.How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
2.How long is the cable?
Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.
3.How thick can 1500w-3000W be welded
1-8mm thick metal materials.
4.Is there a wire feeder?
We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address.We will send more detailed pictures to your email.
5.Can aluminum and galvanized steel be welded?
Yes, it can.
6.Packaging
All our machines are packed in wooden boxes.
7.Language interface
Supports language customization, etc. You can also translate and insert to software.
