Product Description

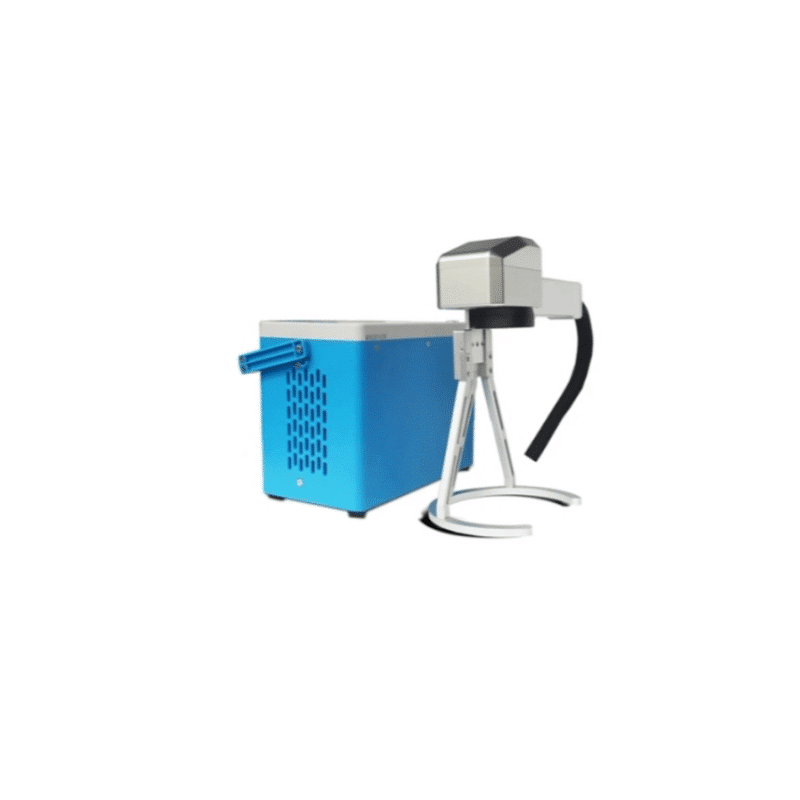

The RL-H8 Handheld Intelligent Laser is a portable, battery-powered, and fully autonomous marking machine! Thanks to its powerful 24V rechargeable lithium battery power supply system, it can be used under normal conditions Maintain working 6-8 hours, strong endurance, and no cable drag, avoid the embarrassment ofsuindden power failure in the process of use, is lightweight and multi-functional, especially suitable Used in large, heavy or not easy to move on the workpiece perfect markingRL-H8 is strong and reliable, the whole machine weighs 6kg, its marking head is only 1.25kg, has an ergonomic grip, comfortable grip, easy to operate. Rear USB port, Software support: text, pattern, two-dimensional code bar code, serial number, graphics, and other marking content, in addition, RL-H8 has convenient storage, and can be carried to different places special The box. Is currently on the market as one of the smallest rechargeable laser marking machines!
Handheld fiber laser engraving machine with powerful 24V rechargeable lithium battery power supply system, it can maintain 6-8 hours of work under normal use, with strong endurance and no cable drag, avoiding the embarrassment of sudden power failure during use.If you have an interest in our products, kindly leave a message or reach out to us for a quotation.
Product Advantages
- can be a variety of metal, non-metallic materials for processing.Especially for high hardness, high melting point, brittle material marking more obvious advantages.
- belongs to the non-contact processing, does not damage the product, no tool wear, marking good quality.
- The laser beam is fine, the processing material consumption is small, and the processing heat influence area is small.
Parameters
| model | RL-H8 | |
|
Laserparameters |
Laser type | 20M/30M |
| Pawer output | 20W/30W | |
| The beam mass is M2 | ≤1.4 | |
| Pulse repetition rate | 27-60 kHz | |
| Wawelength of laser | 1064±5 | |
| Output power stability | < 3% | |
| Life of design | About 100000 working hours (non-service life) | |
|
Optical properties |
Range of marking | 75mm |
| Depth of carving | ≤1mm (depending on power and time) | |
| Speed of engraving | ≤10000mm/s | |
| Accuracy of repetition | ±0.002 | |
| Winirmum mark line width | 0.1mm | |
| Mtinimurm character heighs | 0.15mm | |
|
Usage Environment |
Endurance of servioe | It can be maintained for 6-8 hours under normal use |
| Mode of cooling | Built-in air cooling | |
| System power supply | 500W/100-240V/50/60 Hz | |
|
Other Parameters |
Operating system | linux Operating System |
| File Format | Software supports text, patter, wo-dimensigana code, bar code, serlal umber, graphics and other marking content /standard USB input) |
|

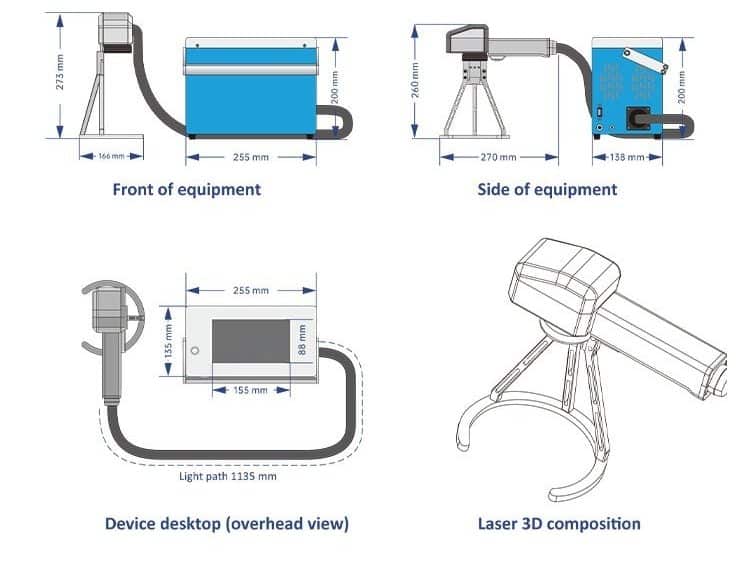

| Size of form | Control box:255X135X200 mm
Marking head:270X166X273mm |
|
| Machine weight | Machine 6kg, marking head 1.25kg | |
FAQ
Q1: Are you a factory or a trading company ?
service.Welcome to visit our factory.Q2: How was the machine guarantee?
A2: We will provide 1 year warranty, and will supply free parts during the machine warranty period if the machine has some problems. If there is a problem with the machine, you can send it back to us to reissue a new machine/parts for you.Thus, any problems, just feel free to let us know, we will provide you with best solutions.Q3: How can I use the machine, if I’m a new buyer?
A3: We will provide English(or other languages) manual and video for the machine you bought.The software is easy to learn with teaching video, also we provide online training services for free. If you still need our help, please contact us any time via voice all or video call both are available.Q4: How do you control your quality?
A4: Quality is priority. The whole production procedure will be under regular inspection and strict quality control. The
complete machine will be tested to make sure they can work very well before shipping out of factory. Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
Q5: How can I know your machine is designed for my product?
A5: You can send samples to us for marking to check the quality, we can help you to do sample testing.Free sample marking service is provided.
