Product Introduction

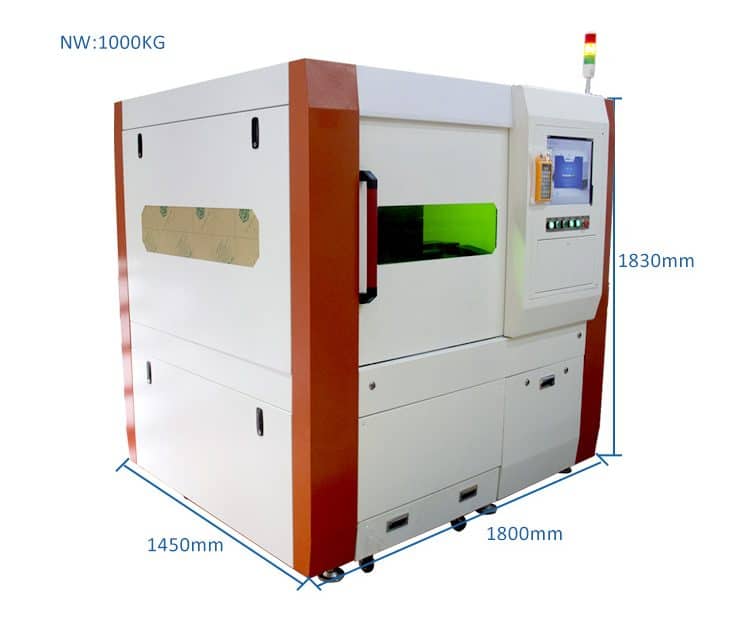

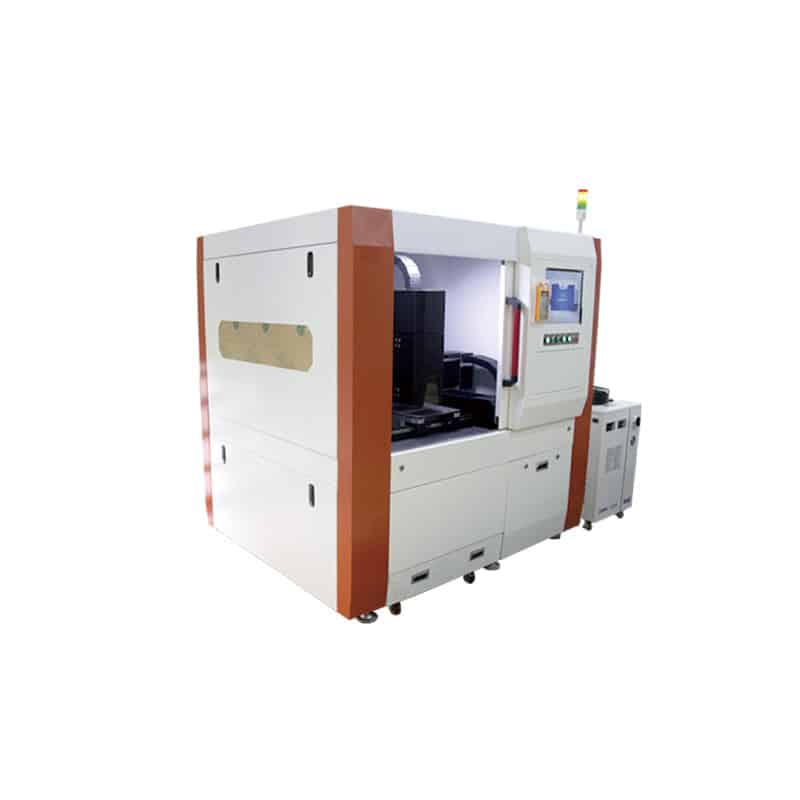

The high-precision cnc laser cutting machine is a full-enclosed small fiber laser cutting machine with high precision, suitable for cutting small precision parts. The whole small fiber laser cutting machine adopts the new three-dimensional protective cover to protect the user’s body and make the work more efficient and safe. If you are interested in our products, please contact us for a quotation.

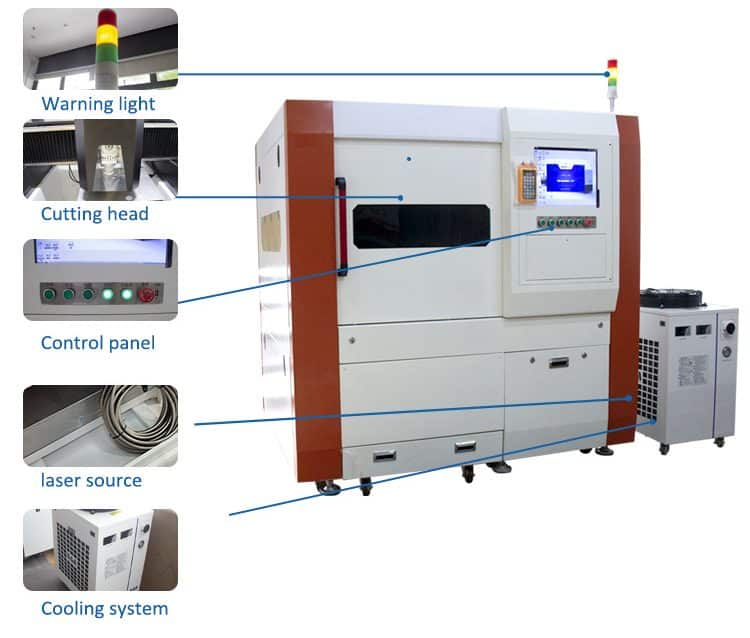

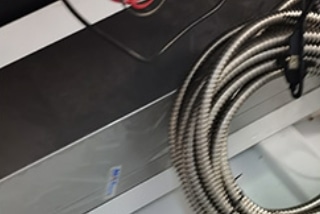

- Laser Source: Internationally famous laser source (Bwt/Max/Raycus/JPT) with stable laser power, long life, good welding effect, and beautiful welding seam.

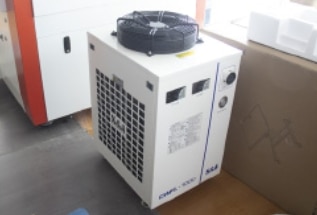

- Water Cooling: Constant temperature cold water machine, condensation, and rapid cooling, to ensure the constant temperature.
- Cutting Head: Fast focusing speed、 high precision、Collimating protective mirror dust-proof design, it fully protects the internal optical components and prolongs the service life.
- Cutting Software: Cutting software includes CNC system,programmable controller, controlcabinet, etc.
- Operate Remote Control: Remote operation without touching themachine tool.
- Indicator Light:The indicator light has 3 colors；Green: The machine is operating normally；Yellow: The machine is working；Red: The machine malfunction alarm.
- Closed Cabinet: Fully enclosed design, the laser protectiveglass reaches DO+4 laser protection level,and the powerful dust removal system doesnot pollute the environment.
- XYZ Axis Drive Condiguration: With the xyz axis configuration, it runsfaster and cuts more accurately, ensuringa straight cut without wavy lines.
Product Application

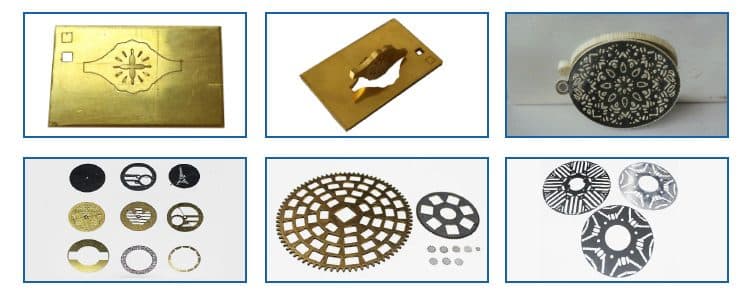

The high-precision CNC laser cutting machine can be used in the home, it is the preferred choice for home workers and high-precision device processing and can be applied for the processing of alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium, metal plate, and tubular products.
Technological Parameter
| Name | Raycus / Maxphotonics Fiber Laser CNC cutting machine 1000W-6000W CNC Fiber Laser Cutting Machines for Metal Sheet |
| Laser Type | Fiber Laser |
| Working area(mm) | 1300*2500MM/1500*3000MM |
| Cutting Head | Raytools Auto-Focus (Swiss) |
| Laser power(W) | 500W/800W/1000W/1500W |
| Driving and Transmission Way | Servo Motor ,Gear Rack, Linear Guide Rail |
| Max running speed | 600m/min |
| Positioning Accuracy | ≤±0.05mm |
| Re-positioning Accuracy | ≤±0.03mm |
| Working Power Supply | AC220V±10% 50HZ/380V 50Hz |
| Working Table | Rack working platform |
| Control System | Cypcut control system |
| Location System | Red dot indicator |
| Water Cooling System | CW6300 Constant temperature water chiller |
| Max Acceleration | 1G |
| Formats | BMP,DXF,PLT,DST,CDR,GPEG |
| Cutting Depth | According the power/material |
| Whole machine weight | 2800KG |
| Transmission | Precise pinion and rack,dual-drive transmitting |
| Model | Fiber laser cutting machine |
| Working Area | 1500*3000mm |
| Laser Power | 500W,1000W,15000W,2KW,3KW and so on, it depends on your demand. |
| Laser Wave Length | 1064nm |
| Working Table | Sawtooth |
| Maximum Idle Running Speed | 1200mm/s |
| Position Accuracy | ±0.05mm/m |
| Position Speed | 20m/min |
| Minimum Line Width | ± 0.02mm |
| Cutting Thickness | 0-25mm |
| Control System | Cypcut |
| Position Type | red dot |
| Power Consumption | ≤12KW |
| Working Voltage | 380V/50Hz |
| Auxiliary Gas | oxygen,nitrogen,air |
| Working life of fiber module | More than 100000 hours |
| Fiber laser cutting head | Lasermech made in USA |
| Focus lens | Lasermech made in USA |
| Driver system | 1500W Fuji servo motor made in Japan |
| Liner guider system | PMI made in Taiwan , (Option THK made in Japan) |
| Transmit system | Dual Rack & Pinion type |
| Rack system | made in Germany |
| Chain system | Igus made in Germany |
| Delivery time | 15 days |
FAQ
1. who are we?
We are based in Guangdong, China, start from 2015,sell to South America(20.00%),Eastern Europe(20.00%),Mid East(10.00%),Western Europe(10.00%),Eastern Asia(8.00%),North America(5.00%),Southeast Asia(5.00%),Northern Europe(5.00%),South Asia(5.00%),Domestic Market(5.00%),Southern Europe(3.00%),Central America(2.00%),Africa(00.00%),Oceania(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Laser Marking Machine,Laser Welding Machine,Laser Cleaning Machine,Laser Cutting Machine,Laser Spare Parts
4. why should you buy from us not from other suppliers?
More than 10 series, 300 types. Personalized products and services to provide customers with a significant advantage.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,D/P D/A,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Japanese
