Product Description

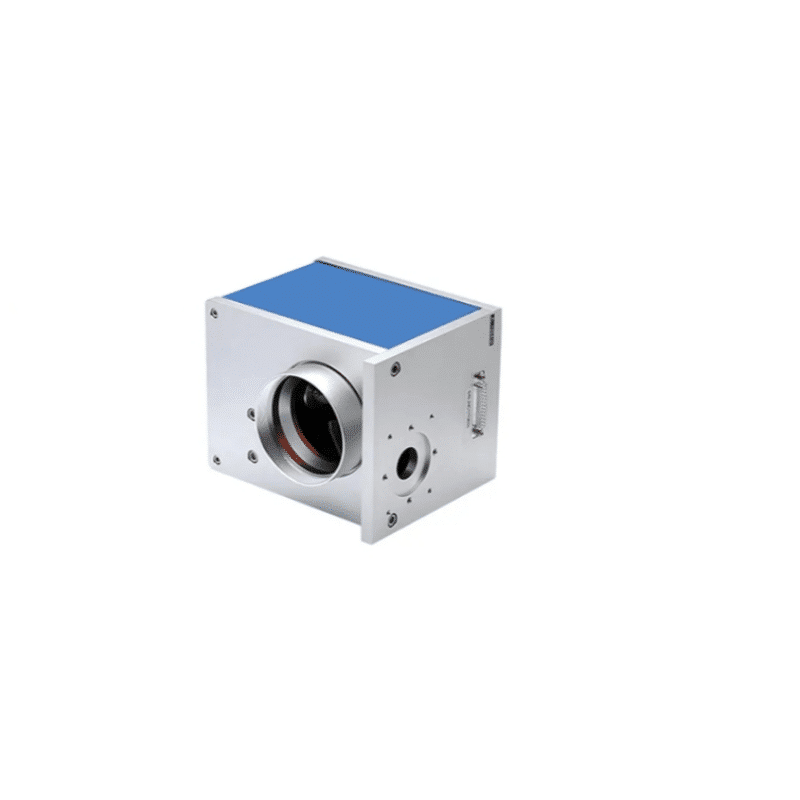

The input aperture of the galvanometer can be selected in the size of 10mm/12mm/16mm, which is used in optical scanning, laser marking, and other industries. This model is designed for high-speed applications.Advanced servo control algorithm and high positioning accuracy. Through strict material control, advanced manufacturing technology, dust-free factory, and long-term aging test to ensure the stable performance of the system.This galvanometer has the characteristics of zero drift, fast speed, low temperature, compact structure, convenient installation, and strong anti-interference ability.If you are interested in our galvanometers, please reach out to us for a quotation. We would be happy to provide you with more information about our products.
Parameters
Model | E10 | E12 | E16 |
Aperture Size | 10mm | 12mm | 16mm |
Typical Scan Angle | +20° | ||
Power Requirement | ±15VDC | ||
1% Full Scale | 0.36ms | 0.4ms | 0.48ms |
Marking Speed | 3.5m/s | 3m/s | 2.5m/s |
Positioning Speed | 7m/s | 6.5m/s | 5.5m/s |
Writing Speed | 650cps | 600cps | 500cps |
Repeatability | 10μrad | 10μrad | 10μrad |
Gain Drift | <80ppm/K | <80ppm/K | <80ppm/k |
Offset Drift | <50μrad/K | <50μrad/K | <50μrad/K |
Long-term Drift | 0.3mrad | 0.3mrad | 0.3mrad |
Operating Temperature | 25°C+10°C | 25°C+10°C | 25°C+10°C |
Digital Communication | XY2-100 | XY2-100 | XY2-100 |
Mirror Coatings | YAG/CO2/Silver | YAG/CO2/Silver | YAG/CO2/Silver |
Weight | 1.38kgs | 1.52kgs | 2.35kgs |
FAQ
1. How long is your delivery time?
Generally it is 5- 10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it depends on the order quantity.
2.How do you control your quality?
We’ll test the machine before the shipment, and let it go through every corner to check the accuracy. Machines can not be dispatched until finished machine pass all essential complicated test after running at least two days without stopping to ensure quality.
3. How con I do if the machine goes wrong ?
lf confronted with such problems, please contact us asap and do not try to fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
