Machine Introduction

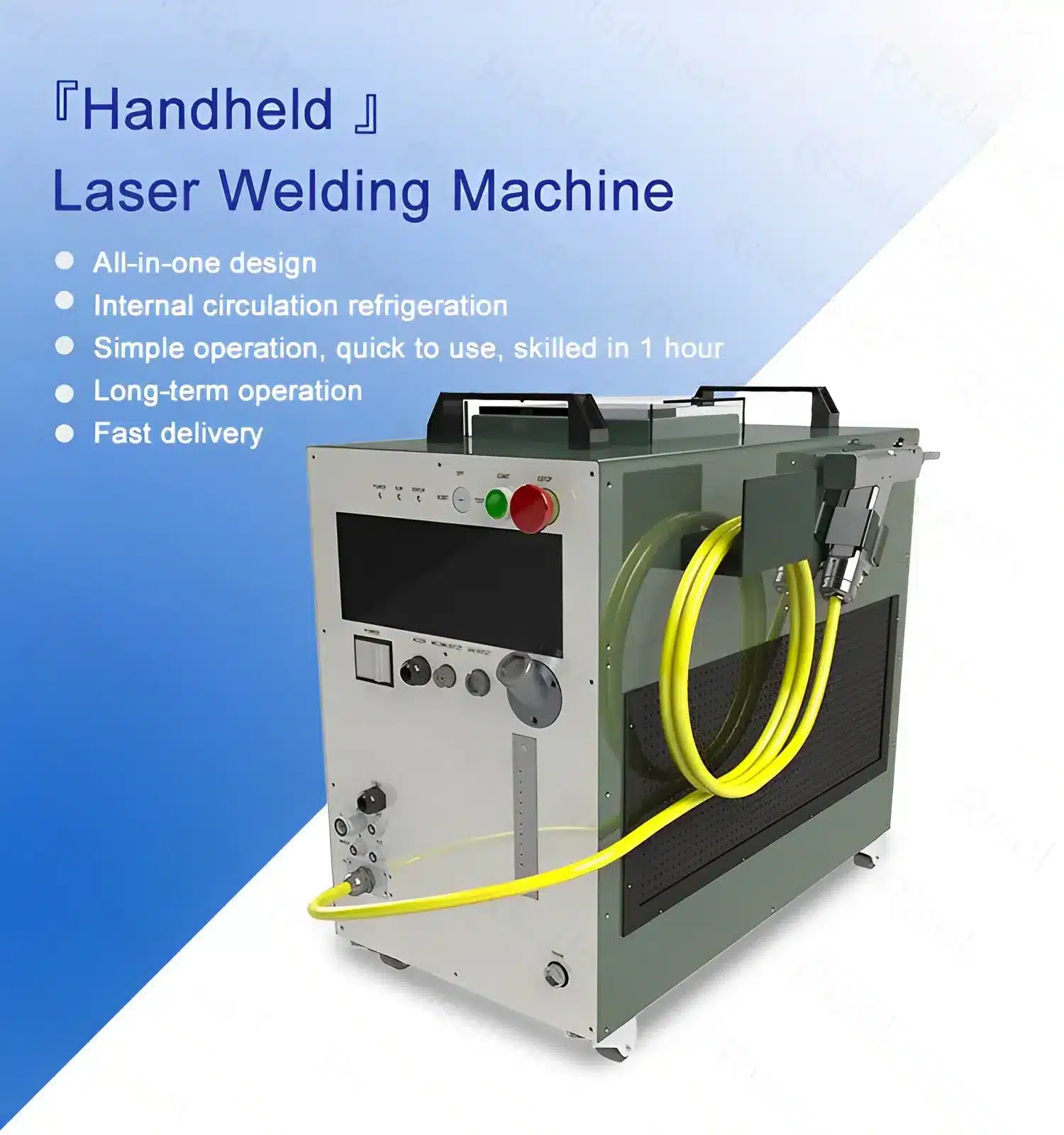

Handheld fiber laser welder, considering the significant size and various limitations of the existing handheld welding laser equipment, RISELASER has introduced the RL-F1500 continuous fiber laser with an internal circulation refrigeration system, eliminating the need for external refrigeration. This innovation offers the benefits of integration and portability. Additionally, it incorporates a distinctive air-cooled output head, enabling seamless walking and welding operations with just the support of a welding gun and other necessary equipment. If you have an interest in handheld fiber laser welder, kindly leave a message or reach out to us for a quotation.
- laser welding head: RLightweight Welding Joints with Comfortable Grip for Swift and Precise Welding of Metal Materials.
- Operation Panel: User-friendly control panel for Eeortless operation, enabling swift parameter configuration with multi-language support.
- Wire feeder:Automation, reducing labor costs, allows for the installation of welding wires of various specifications.
- Laser fiber：Suitable for long-distance operation, wide range, flexible and convenient.
- Cooling vent:Built-in cooling fan automatic cooling.
- Water cooling:Built-in chiller, constant temperature cold watermachine, condensate and fast cooling to ensure constant temperature.
Product Advantages
- Handheld Welding Machine Integrated Design: The integrated design of a handheld welding machine refers to the integration of various components of the welding machine into a portable single device. This design makes the welding machine more compact and easy to carry, facilitating welding operations in various situations.
- Internal Circulation Cooling: The internal circulation cooling system helps maintain the temperature of the welding machine within an appropriate range during the welding process, preventing overheating and equipment failures, ensuring the welding machine remains in optimal working condition.
- Ease of Operation:The design of a handheld welding machine should focus on the principle of simplicity and user-friendliness, providing an intuitive and clear operating interface for quick familiarization by operators.
- Long-Term Usability:High-quality materials and components should be selected, accompanied by stringent quality control and testing to enhance the welding machine’s durability. Furthermore, regular maintenance and upkeep are essential for ensuring long-term usage.
- Fast Transportability:To meet the demands of rapid transportation, a handheld welding machine can be designed to be lightweight and compact for easy carrying and loading/unloading. Additionally, suitable packaging or cases can be provided to ensure the safety of the welding machine during transport.
Detailed Parameters
|
Averagepower(W)
|
1500W
|
|
Working mode
|
Continuous/modulation
|
|
Maximum modulation frequency
|
20
|
|
Central wavelength(nm)
|
1080(±10)
|
|
3dB/Bandwidth3dB(nm)
|
<6
|
|
Long term power stability(%)
|
<3
|
|
Beam quality M2
|
<1.3@20um
|
|
Indicated red light power(uW)
|
<100
|
|
Output mode
|
Standard QBH
|
|
Optical fiber output core diameter(um)
|
50(20/25/100/Optional)
|
|
Length of armor cable(m)
|
5(Customizable)
|
|
Working voltage(VAC)
|
220V
|
|
Rated power consumption(kW)
|
6
|
|
Working ambient temperature(℃)
|
5~45
|
|
Cooling mode
|
Internal circulation
|
|
Overall size(mm)
|
650*353*518.5(Handles not included)
|
|
Net weight(kg)
|
70±5
|
|
Adaptive welding system
|
SUP/QILIN/WSX
|
FAQ
1.who are we?
We are based in Guangdong, China, start from 2015,sell to South America(20.00%),Eastern Europe(20.00%),Mid East(10.00%),Western Europe(10.00%),Eastern Asia(8.00%),North America(5.00%),Southeast Asia(5.00%),Northern Europe(5.00%),South Asia(5.00%),Domestic Market(5.00%),Southern Europe(3.00%),Central America(2.00%),Africa(00.00%),Oceania(00.00%). There are total about 11-50 people in our office.
2.How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
3.why should you buy from us not from other suppliers?
More than 10 series, 300 types. Personalized products and services to provide customers with a significant advantage.
