Product Introduction
The portable fiber laser engraving machine is a special model specially developed by Riselaser for simple, compact, flexible, and convenient equipment requirements. The equipment is extremely cost-effective and adopts a high-quality fiber laser source, a high-stability galvanometer system, and a hidden keyboard and mouse design, which can easily meet the most common laser marking applications. If you are interested in our products, please contact us for a quotation.

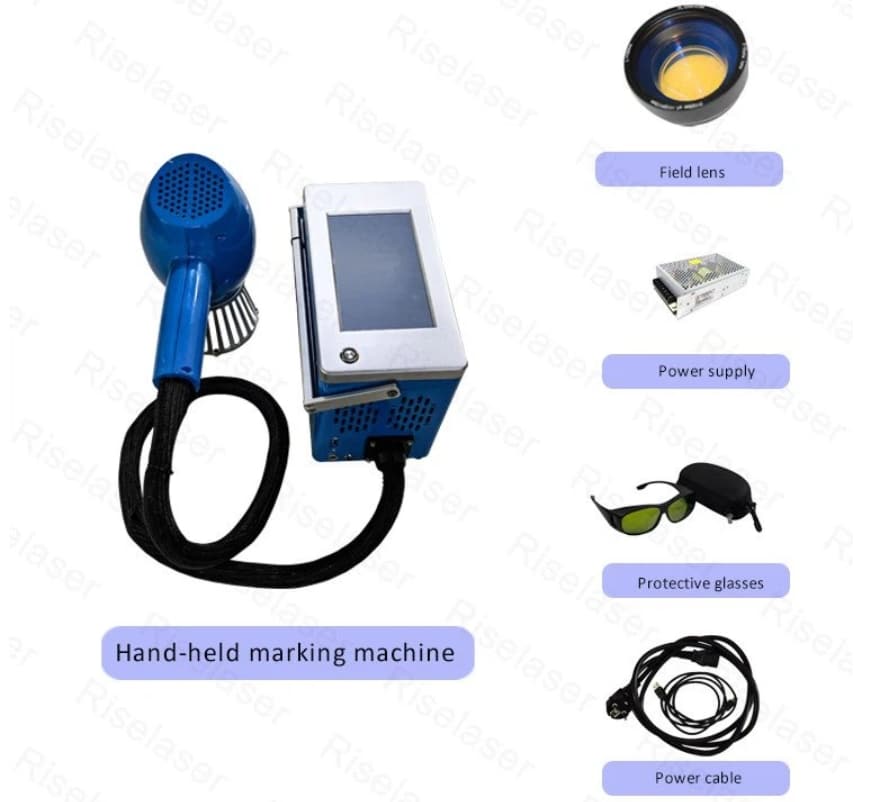

- Operation interface: Working status monitoring, product function adjustment panel.
- Field lens: High focus, high stability, high precision low temperature, reduced delay, automatic calibration.
- Fixed head: Use the marking head to fix the marking position.
- Marking head: its light weight and versatility are ideal for marking large, bulky, and difficult-to-handle workpieces.
- Exhaust port: Effectively cool the machine and effectively dissipate heat to improve working time and efficiency.
- Handle: Portable design makes it easy to move the product.
Product Features
- Powerful and reliable, the weight of the whole machine is 6kg, and its marking head is only 1.25kg.
- Portable fiber laser engraving machine has an ergonomic grip that comfortable to hold and easy to operate.
- It use 24V lithium battery to achieve complete wireless, which can maintain work for 6-8 hours under normal use.
- Using MAX 20W fiber laser source, the spot quality is good, the output light power is stable, and it can be flexibly applied to metal materials and some non-metal materials.
- Increased power control design, the equipment can be charged during work, to achieve continuous work and improve processing efficiency.
Product Parameters
Model | RL-20Q8 |
Outputpower | 20W |
Beam quality M² | ≤1.4 |
Pulse repetition frequency | 27-60 kHz |
Laser wavelength | 1064±5 |
Output power stability | <3% |
Marking area | 80mm |
Engraving depth | ≤1mm(Depending on power and time) |
Engraving speed | ≤10000mm/s |
Repeatability | ±0.002 |
Min mark line width | 0. 1mm |
Minimum character height | 0.15mm |
Cooling way | Built-in air cooling |
System power supply | 500W / 100-240V / 50/60Hz |
Weight | 6 KG |
Dimension | Control chassis: 250X135X195 mm Marking head: 250X120X260 mm |
