Product Introduction
Portable laser marking machines can mark metal materials and some non-metal materials, which is especially suitable for some fields that require more precision and a higher finish. If you have an interest in our products, kindly leave a message or reach out to us for a quotation.

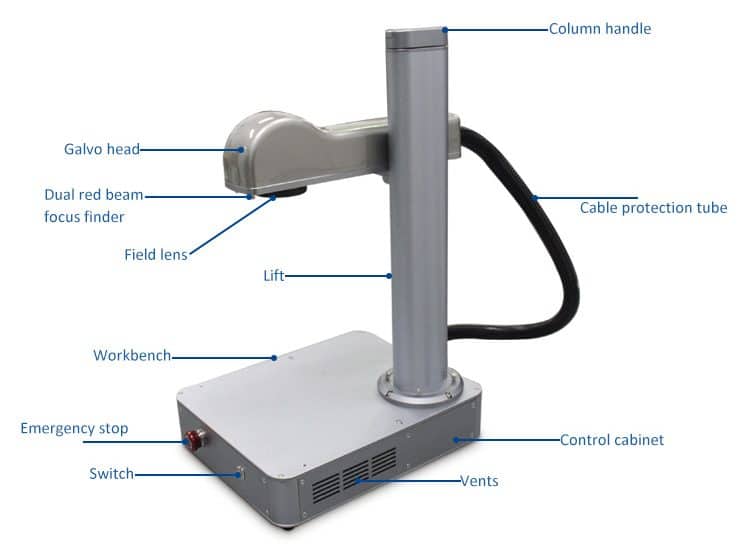

- Laser Source: The famous brand, stable laser power, long service life, and good marking effect.
- Galvo Head: High focus, high stability, high precision, low temperature, reduced delay, automatic calibration, 360°rotation marking.
- Adjust the lift, easily rotate to adjust the precision, more exquisite carving effect more precise calibration.
- 360°rotary marking, Z-axis, Y-axis laser marking, to meet the marking requirements of workpieces of different sizes and heights.
- Imported lens material, high precision, fast speed stable operation, galvanometer is a kind of marking action actuator, which can quickly scan the content that needs to be marked.
- All aluminum plate design, simple structure. flexible and adjustable.multiple column slots for marking at different positions.
- Adopt advanced software with stable performance and high reliability. Software and parameter settings are included before the machine is delivered.
- The double red light assists to correct the focal length, just a simple adjustment, let the doubled dots overlap to reach the focal length Find the focal length without complicated measurements.
Product Features
- A variety of metal and non-metal materials can be processed by portable laser marking machines. It is clear that marking provides benefits, particularly for materials with high hardness, high melting points, and brittleness.
- Processing without contact prevents product degradation and tool wear.
- The marking quality is good, the processing material consumption is minimal, the processing heat-affected area is negligible.
- Computer control is used in portable laser marking machines, making automation simple to implement and maximizing processing effectiveness.
Product Application
Portable laser marking machines are widely used in electronic separation components, integrated circuits, electrical engineering circuits, mobile communications, hardware, tools, kitchen utensils, tool accessories, precision instruments, glasses watches, computer keyboards, jewelry accessories, plastic buttons, hot water accessories, Sanitary ware, PVC pipes, medical equipment and packaging containers and other fields.
Parameters
|
Laser Power
|
20W
|
|
Wavelength
|
1064nm
|
|
Beam Quality
|
M²<1.4
|
|
Cooling
|
Air Cooling
|
FAQ
1. How long is the warranty period? Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
2. How long is the cable? Different laser sources have different options. For example, the normal cable length of raycus and max is about 9 meters.
3. How thick can 1500w-3000W be welded 1-8mm thick metal materials.
4. Is there a wire feeder? We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address.We will send more detailed pictures to your email.
5.Can aluminum and galvanized steel be welded? Yes, it can.
6.Packaging All our machines are packed in wooden boxes.
7.Language interface Supports language customization, etc. You can also translate and insert to software.
