Product Description

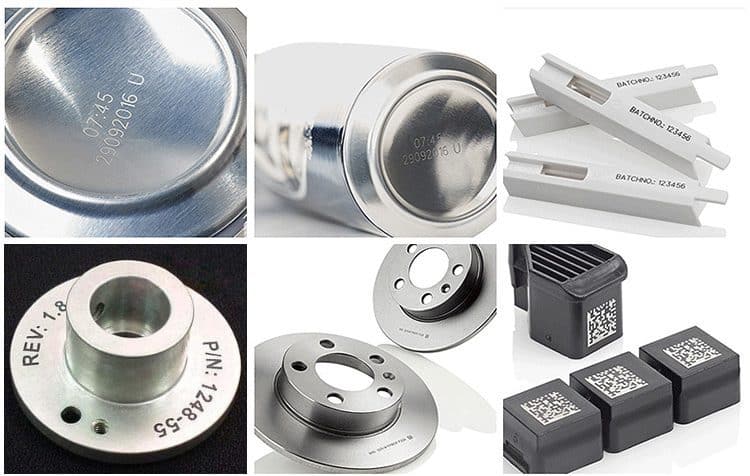

The enclosed type of fiber laser marking machine can be a variety of metal and non-metallic materials for processing. Especially for high hardness, high melting point, and brittle material marking more obvious advantages. Belongs to the non-contact processing, does not damage the product, has no tool wear, marking good quality. The laser beam is fine, the processing material consumption is small, and the processing heat influence area is small. High processing efficiency, the use of computer control, easy to achieve automation.

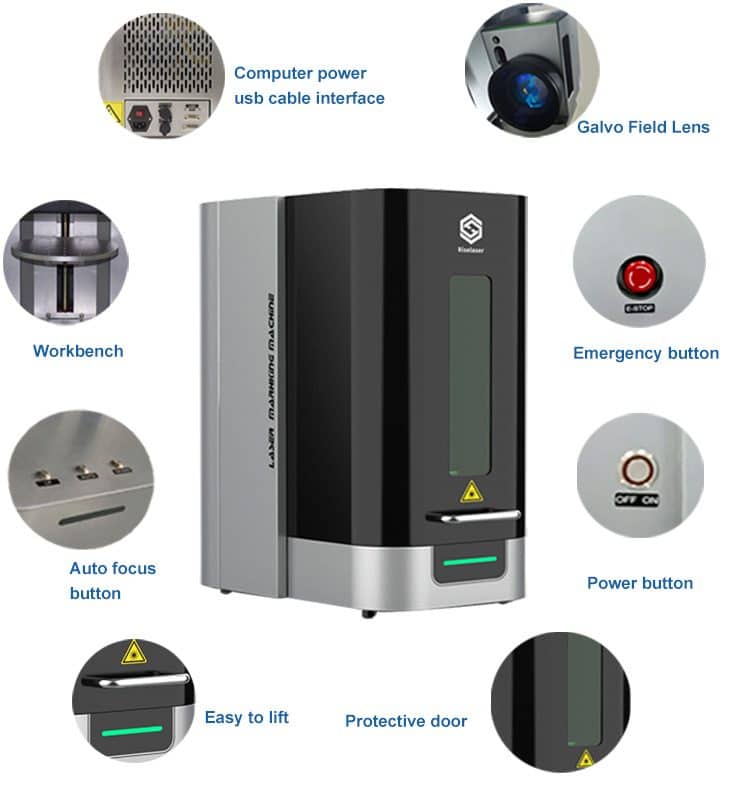

- Laser source: Stable laser power, long service life, and good marking effect.
- Galvo head: High focus, high stability, high precision, low temperature. reduced delay, and automatic calibration.
- Field lens: High precision, fast speed, stable operationThe light spot is fine and the marking effects are clearer.
- Workbench: All aluminum plate design, simple structure flexible and adjustable.Multiple column slots for marking at different positions.
- Control system: Adopt advanced software with stable performance and high reliability. Software and parameter settings are included before the machine is delivered.

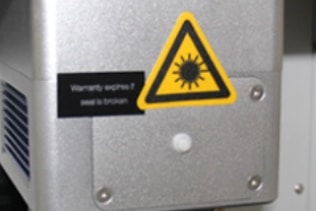

- Laser protection design: Transparent viewing window for observing the marking process,dust-proof design.
- Dual function lift: One-button automatic lift equipped with automatic lift focus easy to find the focus.
Product Features
- Marking areas: 175x175mm and 110x110mm.
- More precision: A fiber laser marking machine’s precision can exceed 0.001mm.
- The lifespan can be between 80,000 and 100,000 hours.
- No resupplies.
- The laser path doesn’t need to be changed.
- Enclosed type fiber laser marking machine with free maintenance for one year.
Product Parameters
| Fiber Laser Source | Model Name | Energy Box |
| Laser Wavelength | 1064nm | |
| Average Output Power | 20W | |
| Modulation Frequency Range | 90 ±10 @27KHZ | |
| Power adjust range | 30~100% | |
| Scanner Head | Maximum Speed | ≤5000mm/s |
| Resolution | 0.01mm | |
| Long-term Power Instability | 5% | |
| Marking Software | EZCAD Control Card + Software | |
| System Properties | External Red Beam | Included |
| Marking Range | 100*100mm | |
| Minimal character | 0.01mm | |
| Minimum Character Height | 0.15mm | |
| Cooling ways | Force-air Cooling | |
| Power supply | AC110/220V, 50HZ | |
| Working Temperature | 0-40℃ | |
| Machine Dimension |
48*31.5*58mm |
|
| Machine Weight |
50 KG |
|
| Packing Dimension |
48*31.5*58mm |
|
| Packing Weight |
70 KG |
|
FAQ
1. who are we?
We are based in Guangdong, China, start from 2015,sell to South America(20.00%),Eastern Europe(20.00%),Mid East(10.00%),Western Europe(10.00%),Eastern Asia(8.00%),North America(5.00%),Southeast Asia(5.00%),Northern Europe(5.00%),South Asia(5.00%),Domestic Market(5.00%),Southern Europe(3.00%),Central America(2.00%),Africa(00.00%),Oceania(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Laser Marking Machine,Laser Welding Machine,Laser Cleaning Machine,Laser Cutting Machine,Laser Spare Parts
4. why should you buy from us not from other suppliers?
More than 10 series, 300 types. Personalized products and services to provide customers with a significant advantage.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,D/P D/A,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Japanese
