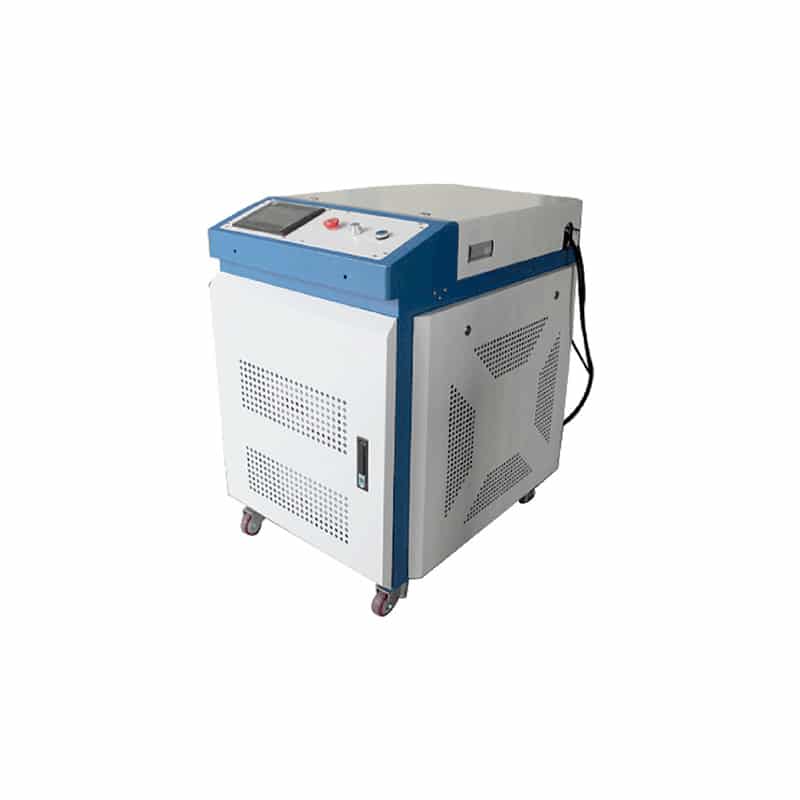

Big Format Metal Rust Removal Laser Cleaning Machine
Product Description
Big format metal rust removal laser cleaning machine uses laser technology to conduct photoelectric physical reactions on various object surfaces, achieving cleaning, decontamination, rust removal, and other effects without the use of chemical solvents and cleaning fluids, achieving the goal of environmental protection and energy conservation.
Product Features
1.Big format metal rust removal laser cleaning machine has no grinding, non-contact, no thermal effect and suitable for various materials, etc.
2. Rapid, clean and accurate cleaning, removal of surface coatings, coatings, oxide.
3. No damage to substrate.
4. High cleaning precision, strong control ability.
5. Can be used for a long time, low operating costs.

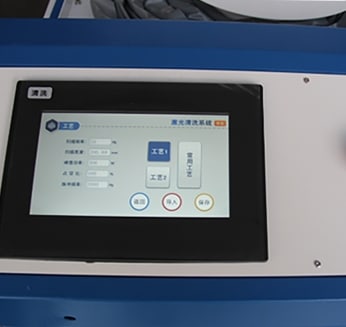

6. The device can realize automatic operation and simple operation.
7. Environmentally friendly, no supplies, no two pollution.
8.No MOQ request,Wholesale price.Please contact us for wholesale price.
Product Parameters
| Laser Power | 1000W | 1500W | 2000W |

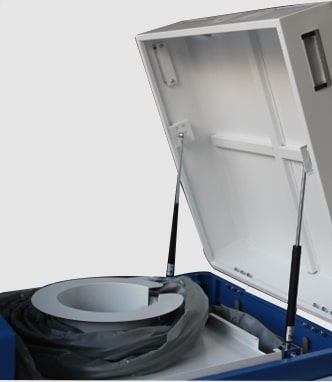

| Fiber cable Length | 10M | 10M | 10M |
| Wavelength | 1080nm | 1080nm | 1080nm |
| Cleaning Head | Single Axis | Single Axis | Single Axis |
| Clean speed | ≤60 M²/Hour | ≤65 M²/Hour | ≤70 M²/Hour |
| Cooling | Water cooling | Water cooling | Water cooling |

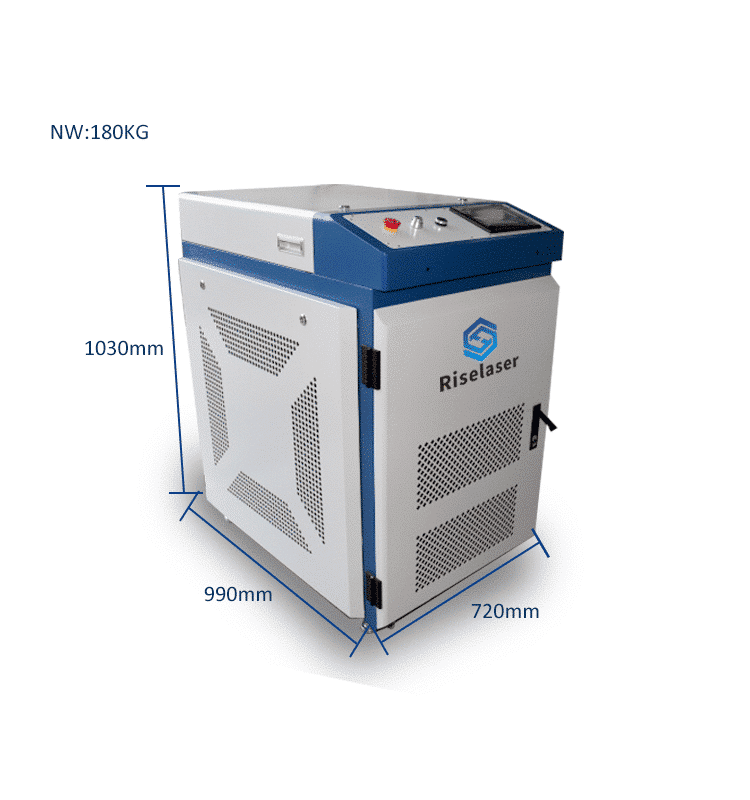

| Dimension | 103*99*72CM | 103*99*72CM | 103*99*72CM |
| Packing size | 120*108*79CM | 120*108*79CM | 120*108*79CM |
| Net Weight | 180KG | 180KG | 180KG |
| Gross Weight | 200KG | 200KG | 200KG |
| Optional | Manual | Manual | Manual |
| Temperature | 10-40 ℃ | 10-40 ℃ | 10-40 ℃ |
| Power | < 7KW | < 7.5KW | < 8KW |
| Voltage | Single Phase 220V, 50/60HZ | Single Phase 220V, 50/60HZ | Single Phase 220V, 50/60HZ |

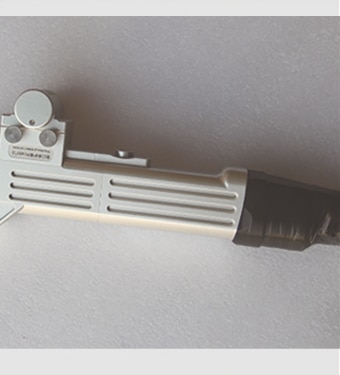

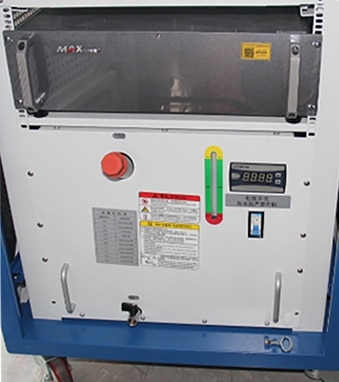

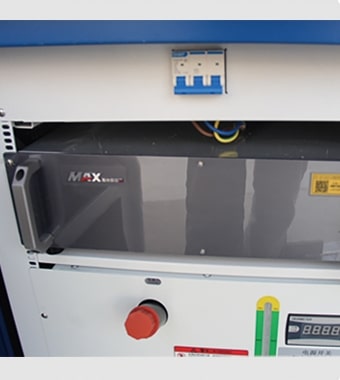

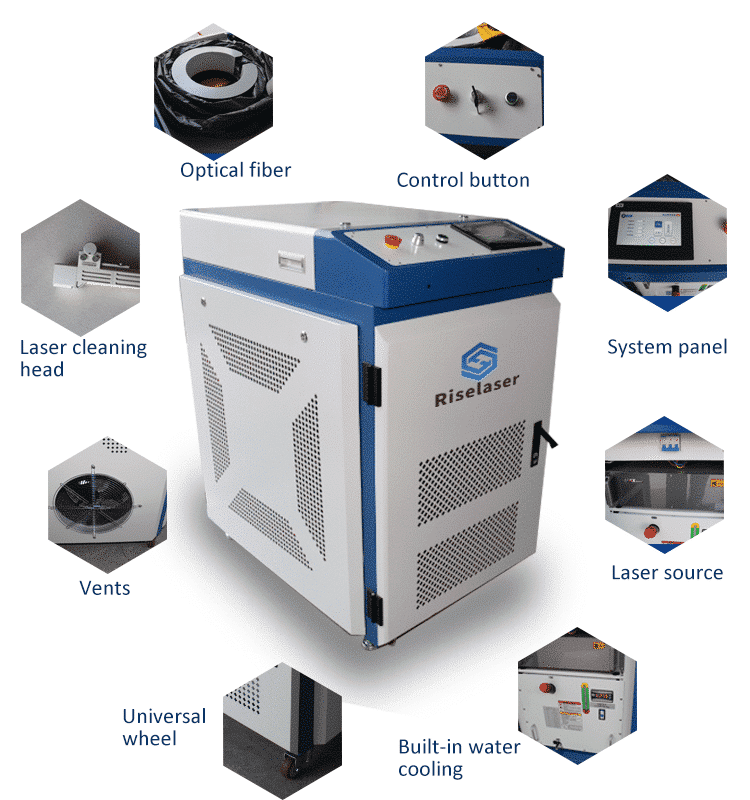

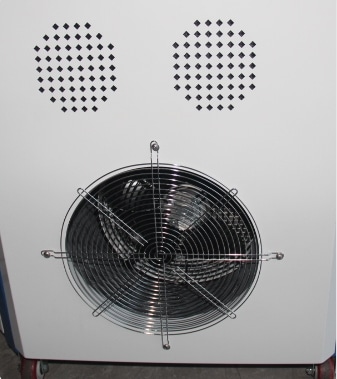

Product Details
Product Comparison
| Comparison | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
| Method | non-contact cleaning | contact cleaning | Abrasive contact | non-contact cleaning |
| Harm | None | Yes | Yes | None |
| Efficiency | High | Low | Low | Mid. |
| Consumable | Power | Chemical Detergent | Abrasive paper,
grinder |
Dry Ice |
| Result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
| Precision | Accuracy controllable.
High precision |
Uncontrollable, low
precision. |
Uncontrollable,
medium precision. |
Uncontrollable, poor
precision. |
| Environment | No pollution | Chemical pollution | Dust pollution | No pollution |
| Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement; Pollution prevention
measures required. |
Need more time & manpower. Pollution prevention measures
required. |
Easy to operate, portable or automatic. |
| Investment | High investment on machine. But no consumable, low
maintenance cost |
Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost.
|

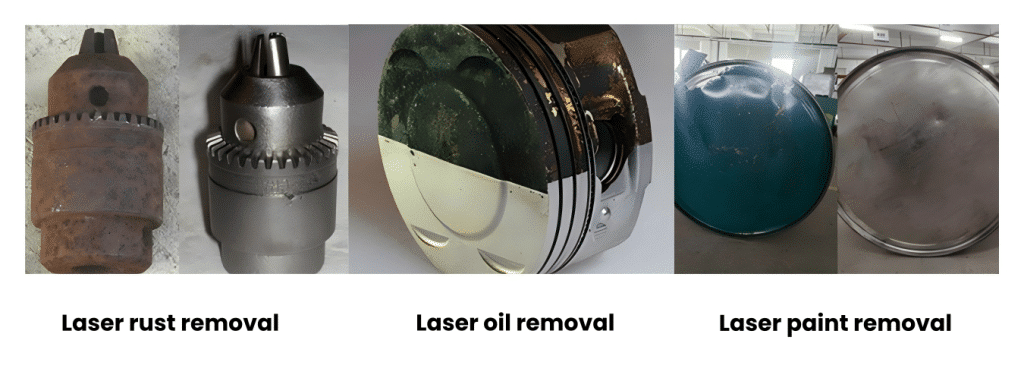

Product Application
Big format metal rust removal laser cleaning machine can be widely used in cabinets, kitchen, staircase elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel home and other industries complex and irregular welding procedures.

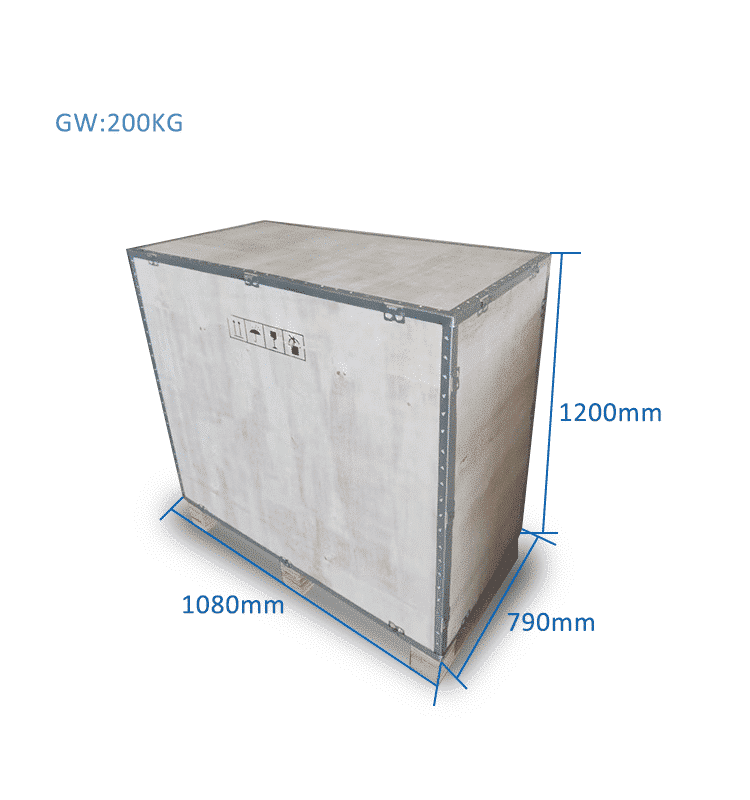

Product Packaging
Big format metal rust removal laser cleaning machine have 3 layers package.
1.For the outside, we adopt wooden cases free of fumigation.
2.In the middle, the machine is covered by foam, to protect the machine from shaking.
3.For the inside layer, the machine is covered by waterproof plastic film.
Exhibition and Certifications
Customer Feedback
After-sale Service
1. We will supply instant online service to foreign customers. According to foreign customer’s requirement, we are able to arrange for technicans to go abord to install or maintain the big format metal rust removal laser cleaning machine.
2. We offer free replacement within one year warranty if any damage under normal using condition.
3. We will offer software upgrade for free for life.
4. After the expiry of warranty, we can renew the warranty contract, which ensures the same service.
5.We will regularly evaluate the staff’s service attitude to improve service quality.
