Product Description

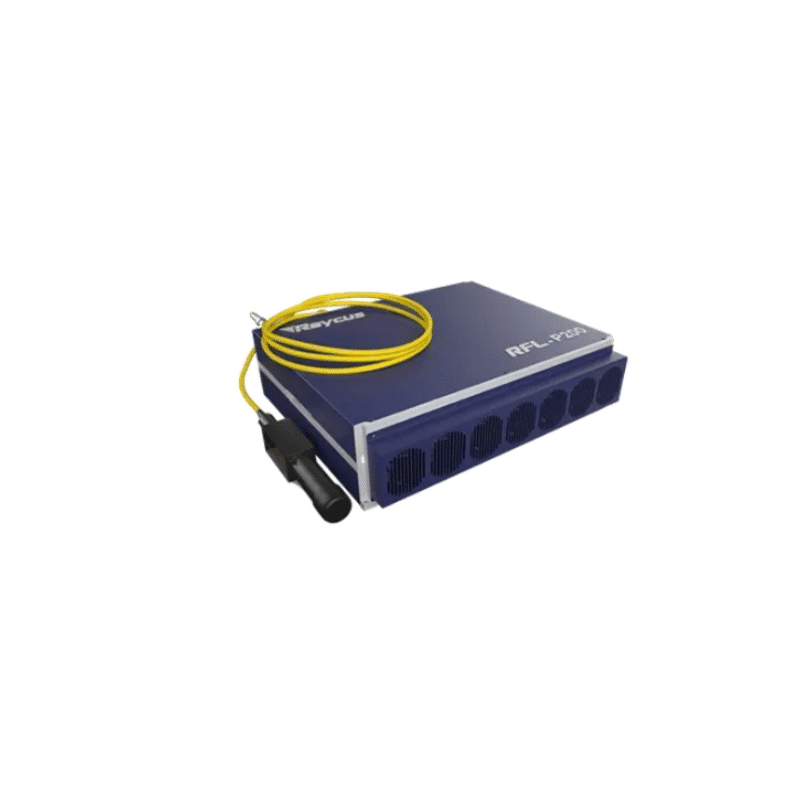

Raycus pulsed lasers are specially developed and manufactured for high-speed and efficient laser marking systems. It provides an ideal high-power laser energy source for industrial laser marking machines and other applications. The laser can emit pulsed lasers with wavelengths of 1060~1085nm, which can be controlled through industrial laser standard interfaces. The laser needs to use a 24V DC power supply. Compared with traditional lasers, pulsed lasers have a conversion efficiency of more than 10 times, lower energy consumption, and are suitable for laboratory or outdoor operation. It is compact, can be placed independently, can be used at any time, and can be directly embedded on the user’s device.If you are interested in our products, please contact us for a quotation.
Advantages
- High beam quality fiber output.
- Superior reliability, and long lifetime.
- No shadow or virtual open circuit phenomenon when processing on special materials.
- Universal DB-25 interface.
-
Short pulse setup time
-
High reliability
-
Maintenance-free operation
Parameters
|
20W |
30W | 50W |
100W |
|
| Central Wavelength |
1064nm |
||||
| Frequency Range(kHz) |
30-60 |
30-60 | 50-100 |
20-200 |
|
|
Output Power Stability |
＜3% | ＜3% |
＜3% |
＜5% | |
| Output Beam Diameter(mm) |
7±1 |
7±1 | 7±1 |
6.5±1 |
|
| Pulse Width(ns) |
90-130 |
90-130 | 90-150 |
50-130 |
|
| Power Supply |
24V |
||||
| Power Range |
10-100 |
||||
| Power Consumption |
170W |
240W | 340W |
450W |
|
| Dimensions(mm) |
391*260*120 |
391*260*120 | 391*260*120 |
396*260*123 |
|
| Cooling |
Air Cooling |
||||
| Operating Temperature |
0-40℃ |
||||
FAQ
Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under “normal use”.
Q3: What’s the guarantee, in case the machine breaks down?
The machine has one year s guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to clients feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q4: How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
