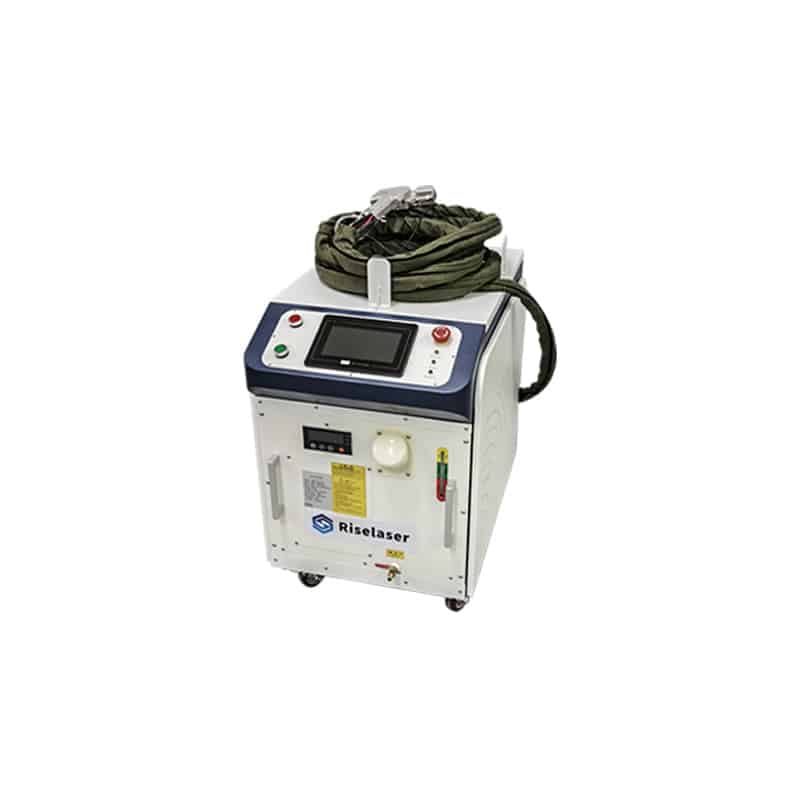

Product Description
The RL-FA series by Riselaer is an innovative and versatile laser welding machine designed for ultimate performance. Equipped with both continuous wave (CW) and pulse output modes, this cutting-edge equipment offers unparalleled flexibility in your welding applications. The Portable laser welder boasts advanced welding technology, allowing for precise and intricate welds that meet the highest quality standards. Additionally, its adjustable focal length feature ensures optimal focus and accuracy, making it ideal for welding various materials, including stainless steel, iron, galvanized, and aluminum.Contact us for a quote!
- Beautiful weld seam
- Flexible & simple to operate.
- High efficiency.
- Portable laser welder with simple interface operation.
- Hand-held design is easy to carry.
- No need for professional welders.
Product Advantages
- 3 modes: welding, cleaning, cutting, the cleaning effect is good and very stable.
- Riselaser double wobble head has multiple welding modes:point, line, circle, triangle, ellipse,semi-circle,eight-character.
- Welding head with touch screen to adjust parameters.
- 2KW can weld 6mm thick stainless steel and carbon steel without adding welding wire.
- Support customization:make your own logo/design the appearance of the machine.
- The whole machine is guaranteed for one year, and online technical support after-sales.
- No MOQ request,Wholesale price.Please contact us for wholesale price.
Product Parameters
| Laser System | RL-F1500 | RL-F2000 |
| Laser Type | 1080nm Fiber Laser | |
| Laser Power | 1500W | 2000W |
| Cooling System | Water Cooling | |
| Way of working | Continuous / Modulation | |
| Laser source | MAX/Raycus/BWT | |
| Laser head | Dual Axis | |
| Speed range of welder | 0~120 mm/s | |
| Focal Spot Diameter | 0.5mm | |
| Ambient temperature range | 10~40℃ | |
| Environmental humidity range | <70% without condensation | |
| Welding thickness | 0.5-3mm | |
| Welding gap requirements | ≤1.2mm | |
| Operating Voltage | 220±10% V AC, 50/60Hz | |
| Machine Dimensions | 745*516*710mm | |
| Packing Weight | 160kg with auto wire feeder | |
| Fiber length | Standard 10m, the longest customized length15m | |
| Welding penetration parameters | ||
| Material |
Output power (W) |
Maximum penetration (mm) |
| Stainless steel | 1500 | 0.5-4 |
| Stainless steel | 2000 | 0.5-6 |
| Carbon steel | 1500 | 0.5-4 |
| Carbon steel | 2000 | 0.5-6 |
| Aluminum alloy | 1500 | 0.5-3 |
| Aluminum alloy | 2000 | 0.5-4.5 |
| Galvanized sheet | 1500 | 0.5-3 |
| Galvanized sheet | 2000 | 0.5-4.5 |
FAQ
1.How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
2.How long is the cable?
Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.
3.How thick can 1500w-3000W be welded
1-8mm thick metal materials.
