Product Introduction
Compared with traditional cleaning methods, portable handheld laser cleaning machine has the advantages of being non-contact, no damage to the substrate, accurate cleaning,” green “environmental protection, and on-line, especially suitable for high-speed online cleaning in designated areas. Contact us for more product information.
- Laser welding head: High sensitivity touch screen integrated on welding head, remotely change parameters, no need to come back again to the main control panel, more convenient to operate.
- Storage box: There are optical fiber and cleaning head storage boxat the top of the cleaning machine, storage optical fiber and cleaning head, convenient for transportation and concise appearance.
Product Features
- Portable handheld laser cleaning machine with non-contact cleaning without damaging the matrix of the parts.
- Accurate cleaning, can achieve precise position, accurate size selective cleaning.
- Do not need any chemical cleaning liquid, no consumables, safety and environmental protection.
Product Application

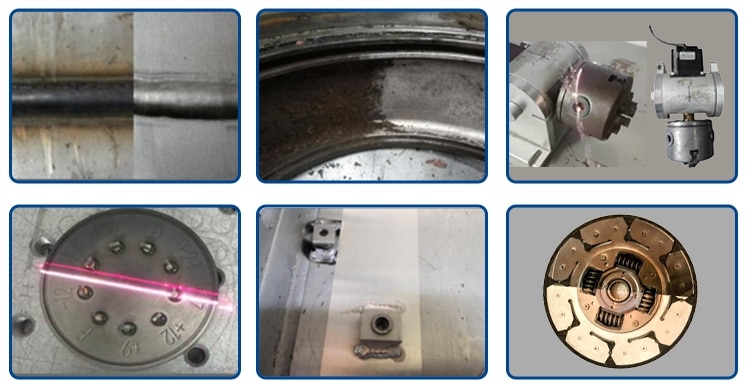

Portable handheld laser cleaning machine can be widely used for the removal of various attachments (paint/rust/oil stains/residues, etc.) on metal and non-metal surfaces, and its high energy density is particularly suitable for the cleaning of high threshold attachments such as aluminum alloy oxide layer/black dense iron oxide.
Parameters
| Operating environment | |
| Supply voltage | Single-phase 220V±10%, 50/60Hz AC |
| Overall power consumption | ≤800W |
| Operating ambient temperature | 5℃～40℃ |
| Ambient humidity | ≤80% |
| Optical parameters | |
| Laser average power | ≥100W |
| Power instability | ＜5% |
| Laser working mode | Pulse |
| Pulse width | 2-500ns adjustable maximum |
| Maximum single pulse energy | 1.5mJ |
| Power adjustment range (%) | 0-100 (gradually adjustable) |
| Frequency adjustment range (kHz) | 1-4000 (gradually adjustable) |
| Fiber length | 3m |
| Cooling method | Air cooling cleaning |
| Cleaning head parameters | |
| Scanning range (length*width) |
0-100mm, continuously adjustable; Dual axis supports 8 scanning modes; |
| Scanning frequency | The highest is not lower than 300Hz |
| Field lens focal length (mm) | 160mm (210mm/254mm/330mm/420mm optional) |
| Depth of focus about | About 5mm |
| Mechanical parameters | |

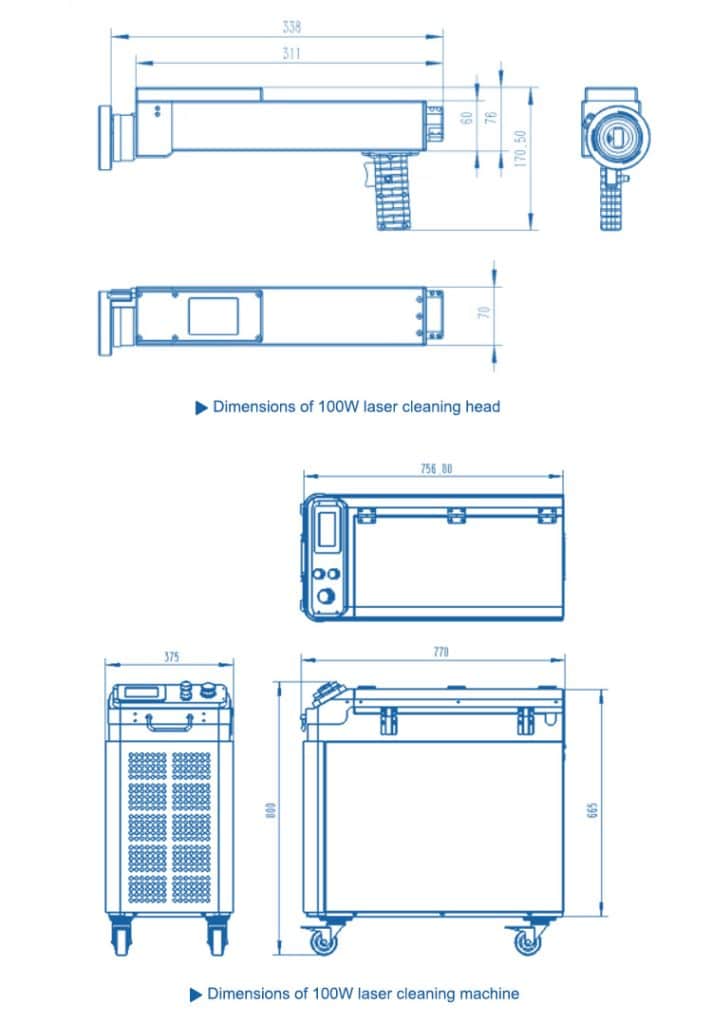

| Machine size (length, width, and height) | About 770mm*375mm*800mm |
| Dimensions after packaging (length, width, and height) | About 870mm*480mm*960mm |
| Machine weight about | About 45KG |
| Packaged weight | About 85KG |
| Cleaning head weight | ＜1.8Kg |
| Operation method | Handheld/Automated |
FAQ
1. How long is the warranty period? Whole machine warranty period is 1 year, laser source is 2 years. If there is any problem during the period, we will solve it as soon as possible.
2.Packaging All our machines are packed in wooden boxes.
3.Language interface Supports language customization, etc. You can also translate and insert to software.
